Product name：Robot guide rail
Category：Robot guide rail
Release time：2024-09-29
Number of views：40
151-5100-0366
Product Introduction
Key components for enhancing the range of motion of industrial robots
Robot guide rails have excellent and stable quality, performance, and a wide range of categories；
Provide a complete robot guide rail solution。
Customization can be made according to customer needs
 |  |  |  |
| Rack and pinion | drag chain | Limit sensor | Sliding rail slider |
Ground rail structural components
Structural component description
| Ground rail structural components | |
| rack | lubrication system |
| rail | drag chain |
| electrical machinery | Drag chain bridge |
| Transmission | Mechanical limit |
| gear | Protective board |
| rack | Bolt adjustment locking device |
| Robot installation board | Ground connection board |

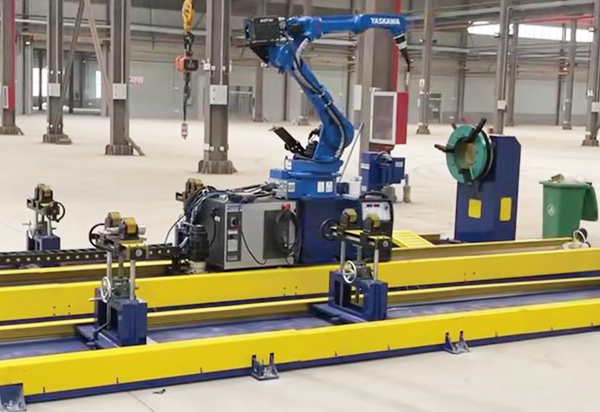

Robot installation location
Product Selection
JFD-01-G200-A-6000
01：serial number
A:Installation position of drag chain；
A/Inside the track；
B/Outer side of the track
6000：Effective travel of guide rail (unit: mm, single segment length cannot exceed 5000mm)
KG200:RATED LOAD
| RATED LOAD KG | 200KG | 500KG | 1500KG | 3000KG |
General Technical Parameters
| JFD-01-KG200/KG500/KG1500/KG3000 | |
| acceleration | 1000mm/s² |
| Movement speed | 100-1500mm/s² |
| reduction ratio | 1：10 |
| repeatability | ±0.05mm |
