Total power: 36KVA Working power supply: Three phase five wire system 3x380V ± 10%/50Hz Working power supply mode: fast plug power supply Equipment weight: 1650kg (slightly different depending on the selection) Dimensions: 2800mm × 1500mm × 1600mm
Visual accuracy: ≤ 0.5mm Scanning frame rate: 2000 frames per second Visual (standard): RX01
Battery voltage: 48V Battery capacity: 73ah Walking power supply: DC48V
Walking drive: Three wheel drive Robot arm extension range: 2010mm (with slight differences depending on different models) Control method: wireless remote control Walking speed: 2km/h Range: 10km
Total ambient temperature: 0 ° C to+45 ° C (during operation)- 20 ℃~+60 ℃ (during transportation and storage) Relative humidity: ≤ 90% RH (non condensing)
Product Introduction

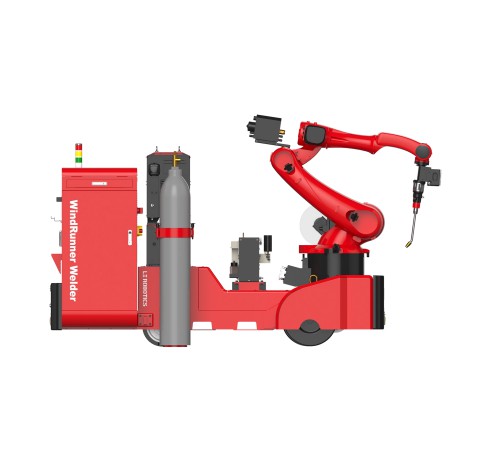

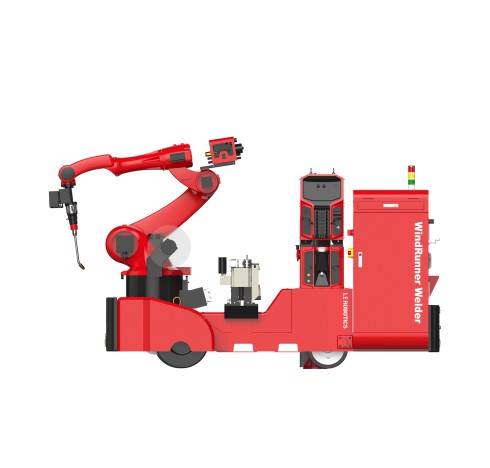

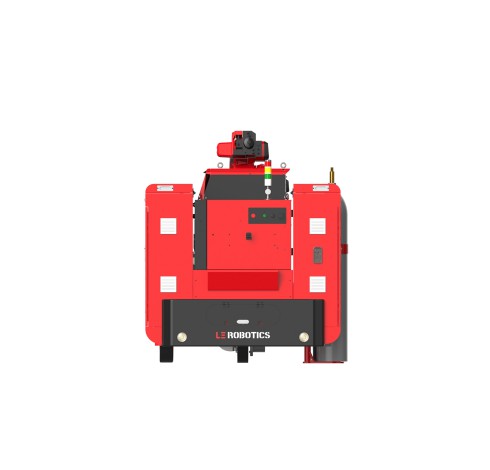

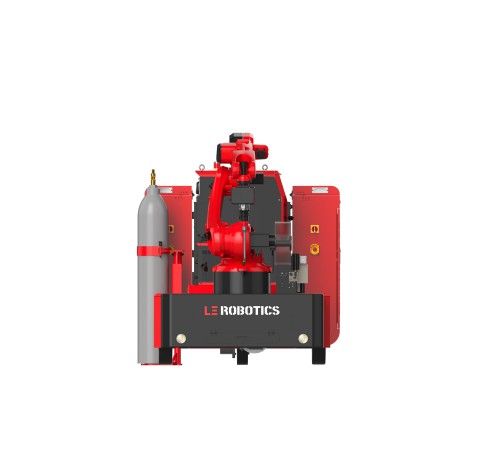

Equipped with a differential bridge power system, it has the advantages of high precision and high flexibility. 3D vision technology, AI technology, wireless remote control driving technology, etc., without programming or teaching, make welding operations more intelligent and flexible. Equipped with an RX welding process library, it can automatically generate precise paths and welding postures, making it easy to handle various welding scenarios.
pressure vessel
petroleum machinery
Shipbuilding
construction machinery
Steel structure manufacturing
Product parameters
| basic parameters | Visual performance | Endurance capability | motion performance | application environment |
total power36KVA | Visual accuracy ≤0.5mm | battery voltage48V | Walking Drive three-wheeled | Total ambient temperature0 ° C to+45 ° C (during operation)- 20 ℃~+60 ℃ (during transportation and storage) |
Work power supplyThree phase five wire system 3x380V ± 10%/50Hz | Scanning frame rate 2000frame per second | Battery capacity 73ah | Robot arm extension range 2010mm（Choose different models with slight differences） | relative humidity≤90%RH(No condensation) |
Working power supply modeQuick plug power supply | Visual (standard)RX01 | Walking power supplyDC48V | Control method Wireless remote control | |
Equipment weight1650kg（Slight differences in selection） | Walking speed 2km/h | |||
External dimensions2800mm×1500mm×1600mm | range 10km |
