Total power: 36.5KVA Working power supply: Three phase five wire system 3x380V ± 10%/50Hz Working power supply mode: fast plug power supply Equipment weight: 1550kg (slightly different depending on the selection) Dimensions: 2900mm × 1700mm × 1750mm
Visual accuracy: ≤ 0.5mm Scanning frame rate: 2000 frames per second Visual (standard): RX01
Battery voltage: 48V Battery capacity: 73ah Walking power supply: DC48V
Walking drive: track type Robot arm extension range: 2010mm (with slight differences depending on different models) Control method: wireless remote control
Total ambient temperature: 0 ° C to+45 ° C (during operation)- 20 ℃~+60 ℃ (during transportation and storage) Relative humidity: ≤ 90% RH (non condensing)
Product Introduction

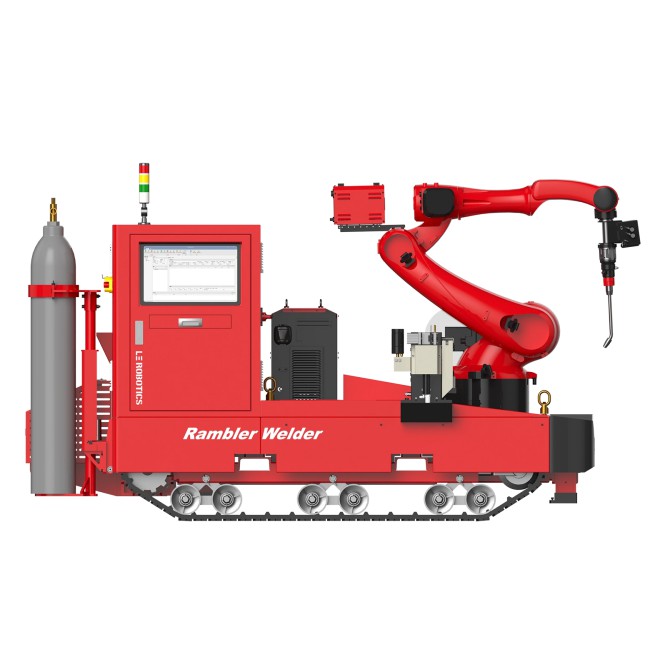

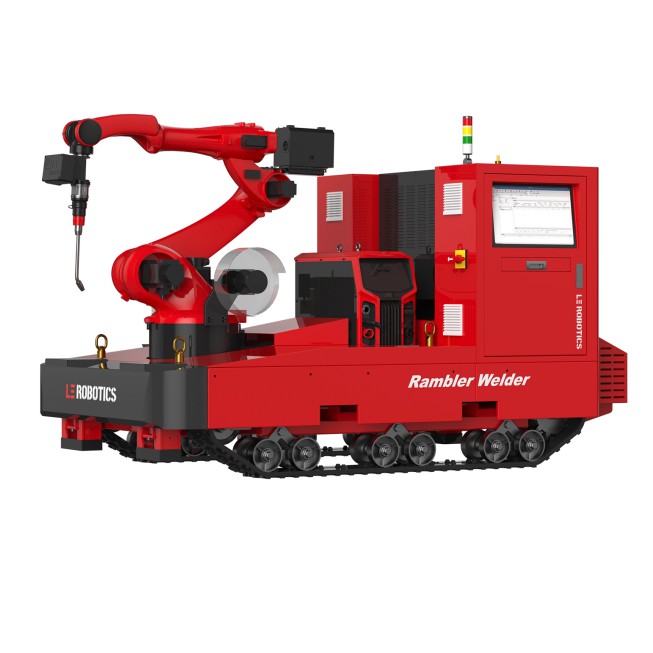

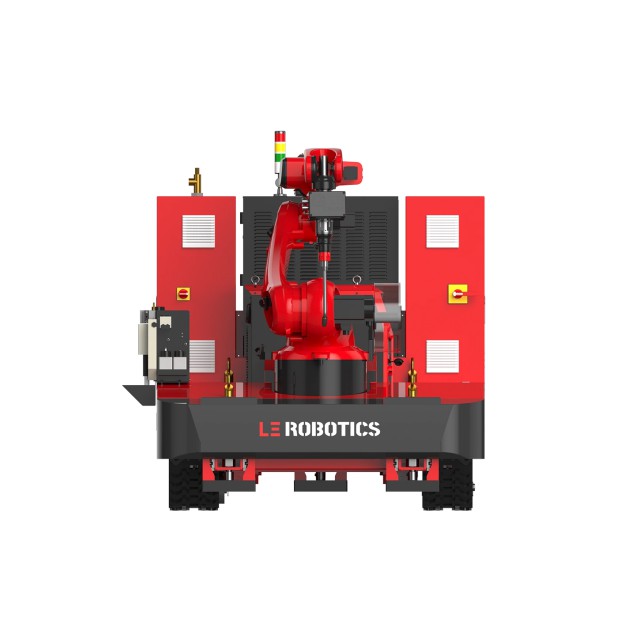

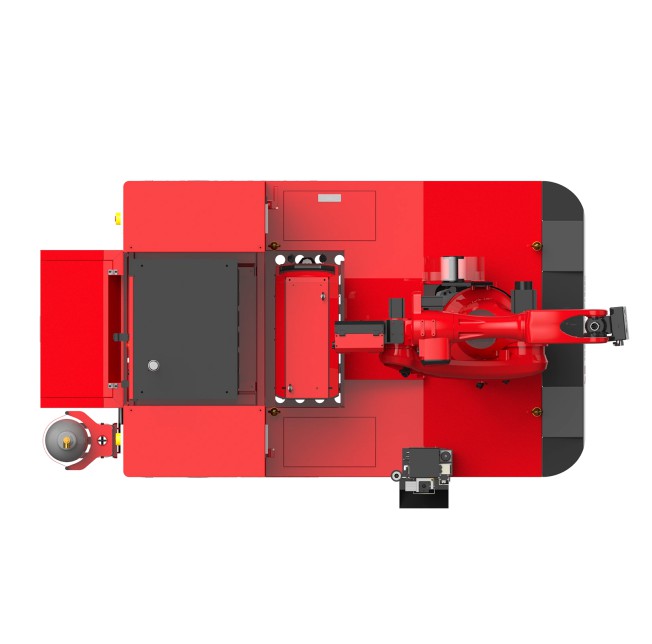

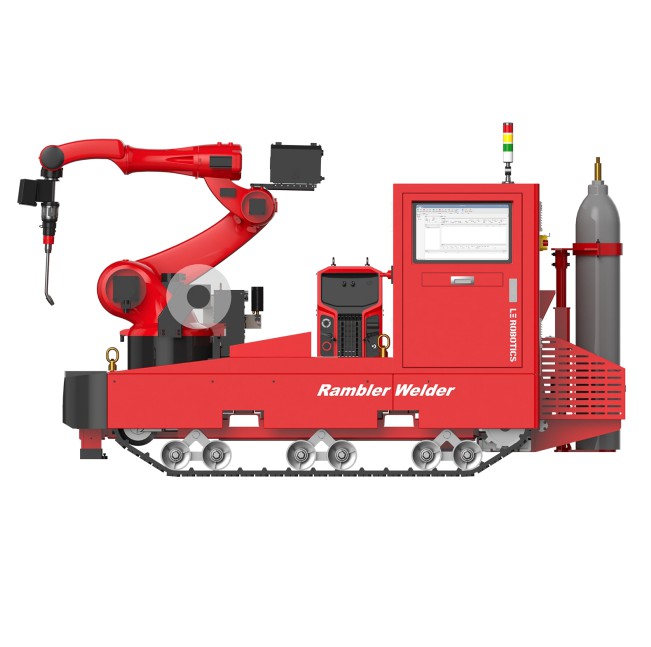

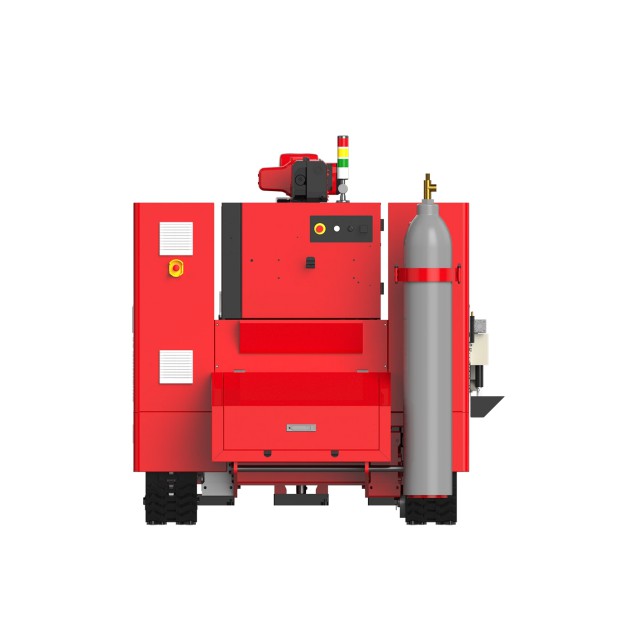

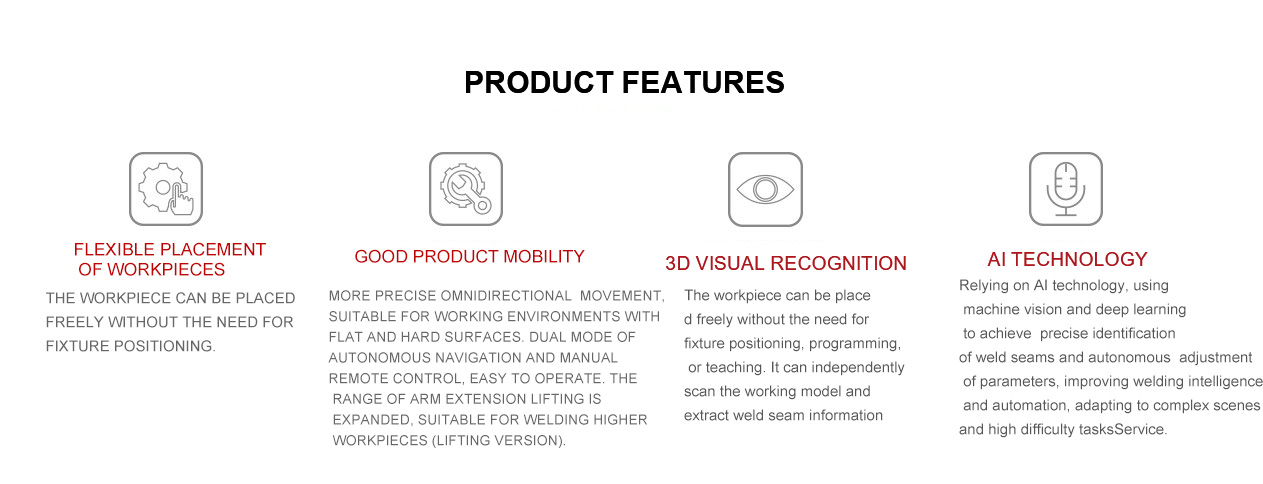

Outdoor welding tools with various terrain adaptability. 3D vision technology, AI technology, wireless remote control driving technology, etc., without programming or teaching, make welding operations flexible and intelligent. Equipped with RX welding process library, it can automatically generate accurate paths and welding postures to complete various welding operations. The optional rain and light dual-use cover can adapt to various weather environments.
Harsh Environments
Metal structural components of roads and bridges
Road and bridge bend board
Product parameters
basic parameters | Visual performance | Endurance capability | motion performance | application environment |
total power 36.5KVA
| Visual accuracy ≤0.5mm
| battery voltage 48V
| Walking Drive crawler-type
| Total ambient temperature 0 ° C to+45 ° C (during operation)- 20 ℃~+60 ℃ (during transportation and storage)
|
Work power supply Three phase five wire system 3x380V ± 10%/50Hz
| Scanning frame rate 2000frame per second
| Battery capacity 73ah
| Robot arm extension range 2010mm（Choose different models with slight differences）
| relative humidity ≤90%RH(No condensation）
|
Working power supply mode Quick plug power supply
| Visual (standard) RX01
| Walking power supply DC48V
| Control method Wireless remote control | |
Equipment weight 1550kg(Slight differences in selection)
| 行走速度 1km/h
| |||
External dimensions 2900mm×1700mm×1750mm
|
