Total power: 50KVA Working power supply: Three phase five wire system 3x380V ± 10%/50Hz Working power supply method: coiled cable power supply Equipment weight: 3200kg (slightly different depending on the selection) Dimensions: 3400mm × 1500mm × 2400mm
Visual accuracy: ≤ 0.5mm Scanning frame rate: 2000 frames per second Visual (standard): RX01
Walking drive: rudder wheel type Robot arm extension range: 2272mm (with slight differences depending on different models) Navigation method: LiDAR Walking speed: 2.2km/h Lifting and lowering stroke: upper computer software and mobile APP
Total ambient temperature: 0 ° C to+45 ° C (during operation)- 20 ℃~+60 ℃ (during transportation and storage) Relative humidity: ≤ 90% RH (non condensing)

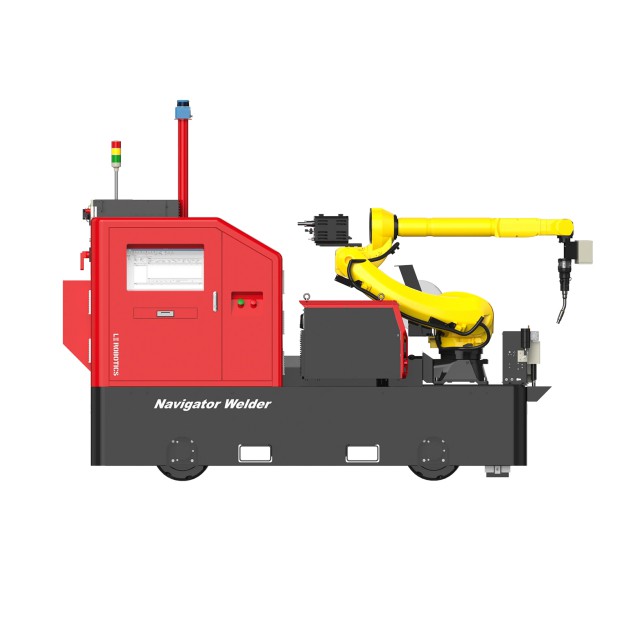

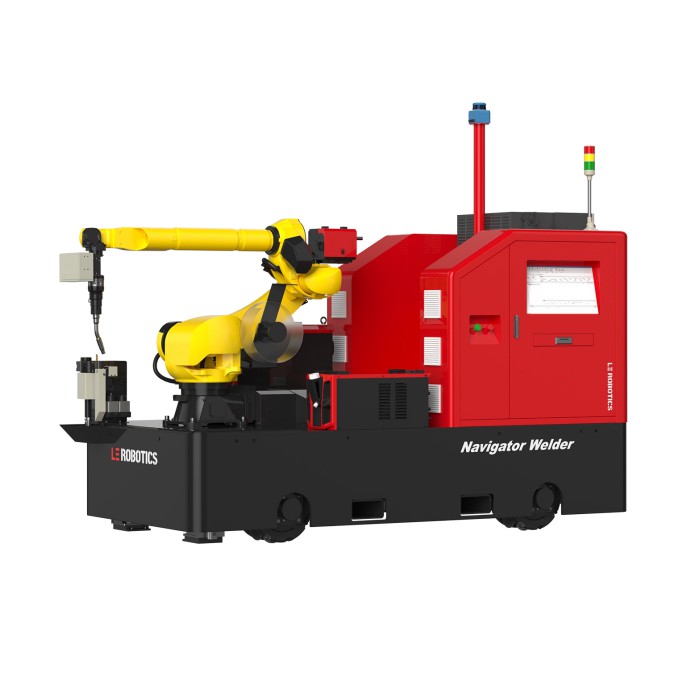

Product Introduction
Equipped with a steering wheel power system and omnidirectional mobility, it can help customers overcome the pain points of rough terrain. 3D vision technology, AI technology, autonomous navigation technology, etc., without programming or teaching, equipped with RX welding process library, making welding operations more precise and flexible. The mobile app can remotely assign scheduling tasks, enabling multiple robots to collaborate and meet users' dynamic production needs.
Large scale heavy industry
petroleum machinery
aerospace
water conservancy and hydropower
Rail Transit
Product parameters
basic parameters | Visual performance | motion performance | application environment |
total power 50KVA
| Visual accuracy ≤0.5mm
| Walking Drive Rudder wheel
| Total ambient temperature 0 ° C to+45 ° C (during operation)- 20 ℃~+60 ℃ (during transportation and storage)
|
Work power supply Three phase five wire system 3x380V ± 10%/50Hz
| Scanning frame rate 2000frame per second
| Robot arm extension range 2272mm（Choose different models with slight differences）
| relative humidity ≤90%RH(No condensation）
|
Working power supply mode Rolling cable power supply
| Visual (standard) RX01
| Navigation method laser radar
| |
Equipment weight 3200kg(Slight differences in selection)
| Walking speed 2.2km/h
| ||
External dimensions 3400mm×1500mm×2400mm
| Lift stroke Upper computer software and mobile app ·
|
