Total power: 30KVA Working power supply: Three phase five wire system 3x380V ± 10%/50Hz Working power supply mode: fast plug power supply Equipment weight: 1500kg (slightly different depending on the selection) Dimensions: 2500mm × 900mm × 1800mm
Visual accuracy: ≤ 0.5mm Scanning frame rate: 2000 frames per second Visual (standard): RX01
Battery voltage: 48V Battery capacity: 32ah Walking power supply: DC48V
Walking drive: Three wheel drive Robot arm extension range: 2010mm (with slight differences depending on different models) Control method: wireless remote control Walking speed: 2.5km/h
Total ambient temperature: 0 ° C to+45 ° C (during operation)- 20 ℃~+60 ℃ (during transportation and storage) Relative humidity: ≤ 90% RH (non condensing)
Product Introduction

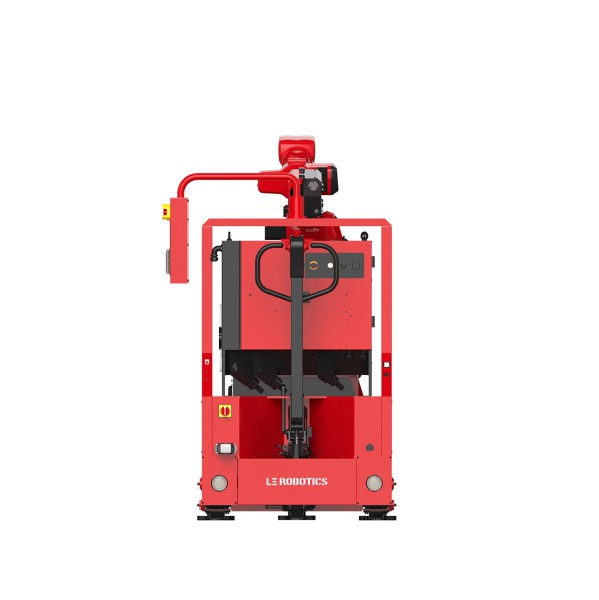

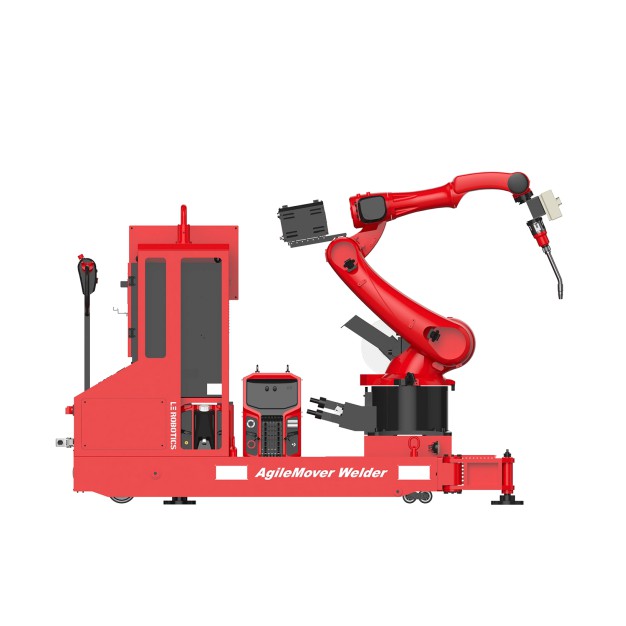

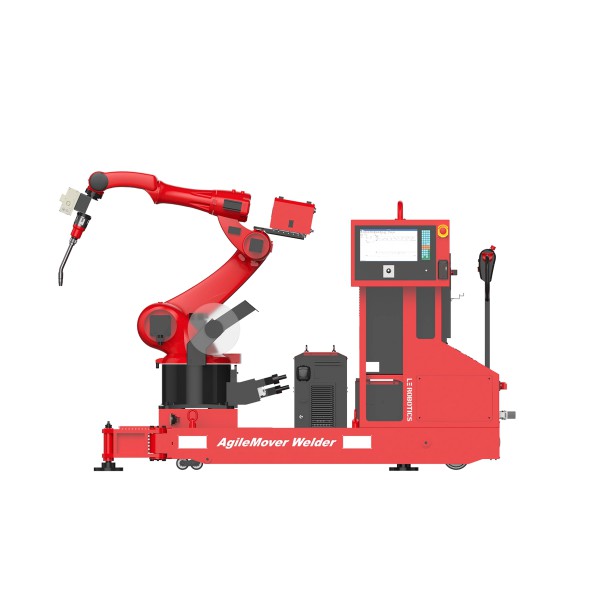

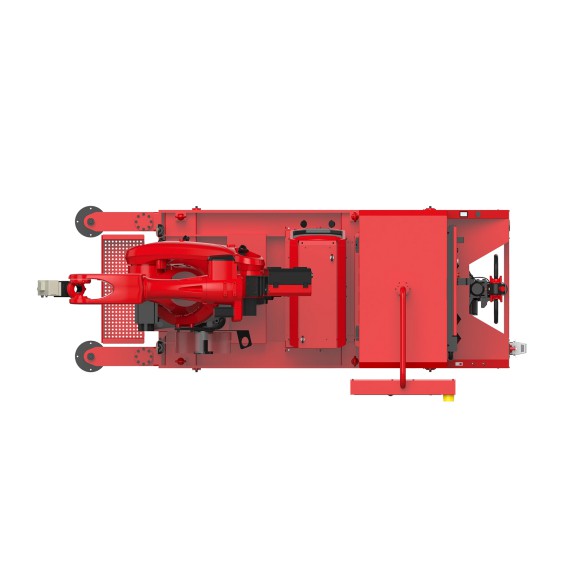

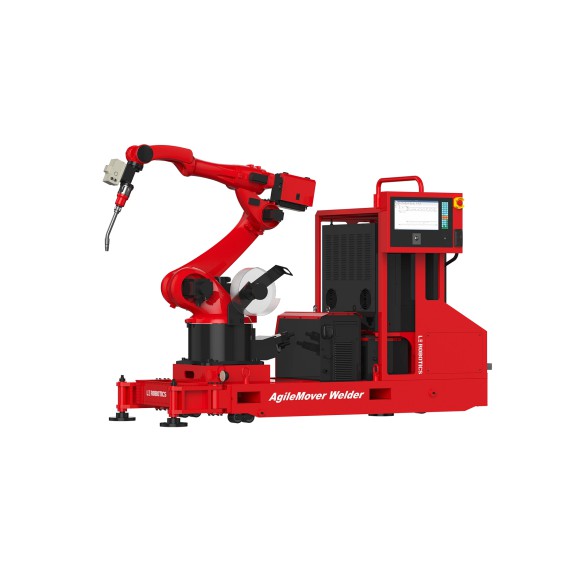

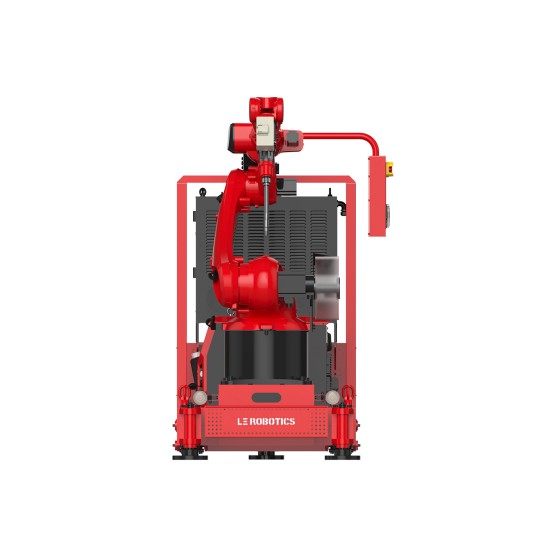

Narrow space welding artifact, compact in size. The vehicle is equipped with a wheel hub motor power system, with manual assisted steering for flexible movement. 3D vision technology, AI technology, etc., programming free, teaching free, and pre installed with multiple welding programs, can automatically generate accurate paths and welding postures. The strong price advantage of Shenxing makes it an ideal choice for enterprises to improve production efficiency and reduce labor costs.
pressure vessel
petroleum machinery
Shipbuilding
construction machinery
Steel structure manufacturing
Product parameters
basic parameters | Visual performance | Endurance capability | motion performance | application environment |
total power 30KVA
| Visual accuracy ≤0.5mm
| battery voltage 48V
| Walking Drive 三轮式
| Total ambient temperature 0 ° C to+45 ° C (during operation)- 20 ℃~+60 ℃ (during transportation and storage) |
Work power supply Three phase five wire system 3x380V ± 10%/50Hz
| Scanning frame rate 2000 frames per second
| Battery capacity 32ah
| Robot arm extension range 2010mm（Choose different models with slight differences）
| relative humidity ≤90%RH(No condensation)
|
Working power supply mode Quick plug power supply
| Visual (standard) RX01
| Walking power supply DC48V
| Control method Wireless remote control
| |
Equipment weight 1500kg(Slight differences in selection)
| Walking speed 2.5km/h
| |||
External dimensions 2500mm×900mm×1800mm
| ·
|
