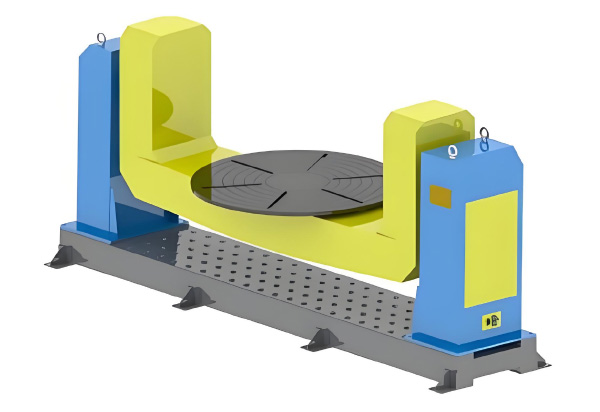

Product name：U-shaped positioner
Category：U type
Release time：2024-09-28
Number of views：89
151-5100-0366
Product Introduction
An important component for improving the accuracy of industrial robots
The positioner has excellent technical strength, strict quality control, and a wide range of product categories.
Has a good cost-effectiveness advantage.
High precision: The repeated positioning accuracy can reach 0.06mm
Variety: O-type, L-type, U-type, H-type, adjustable first position, etc.
Customization can be made according to customer needs
Product selection
JFD-02-L-G200/400
01: Product serial number
02: Product type
L-shaped, H-shaped, U-shaped, O-shaped
KG200/400: Load capacity (200kg/400kg)
| JFD-02-0-KG300/500/1000 | |
| Input power supply | 220V/380V 50/62Hz |
| Load capacity | 300KG/500KG/1000KG |
| accuracy | ≤larcmin |
| Workbench height | 800mm(non-standard) |
| Reverse speed | adjustable |
| flip angle | 0~360°C |
| Rotating speed regulation | automatic |
| Flip motor power | 1kw、1.5kw、2kw、3kw |
| protection grade | IP65 |
| JFD-02-L-KG200/400 | |
| One axis rotation angle | 士135°c |
| Two axis rotation angle | 士360°c |
| One axis rotation angle | 5-12r/min |
| Two axis rotation angle | 5-17r/min |
| repeatability | Φ500士0.06mm |
| Carrying current | 95m² 500A |
| Rotary disc size | Φ500mm With T-shaped groove |
| Drive mode | Robot external axis |
| Power supply conditions | 380V |
| JFD-02-U-KG300/500 | |
| One axis rotation angle | 士115°c |
| Two axis rotation angle | 士360°c |
| One axis rotation angle | 5-12r/min |
| Two axis rotation angle | 5-10r/min |
| Repeatability | Φ500士0.06mm |
| Carrying current | 95m² 500A |
| Rotary disc size | Φ500mm With T-shaped groove |
| Drive mode | Robot external axis1.5/2.5KW |
| Power supply conditions | 380V |
| Hollow shaft | Φ500mm |
| JFD-02-H-KG300/500 | |
| Input power supply | 380V |
| Load capacity | <500KG |
| accuracy | ≤larcmin |
| Workbench height | 800mm(non-standard) |
| Reverse speed | adjustable |
| flip angle | 0~360C° |
| Rotating speed regulation | automatic |
| Flip motor power | lkw、1.5kw、2kw、3kw |
| protection grade | IP65 |
