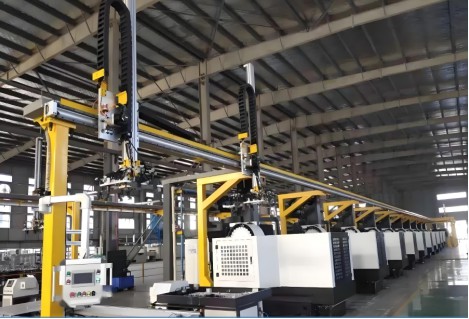

Application in loading and unloading of CNC machine tools

The application of truss robots is becoming increasingly popular in the processing and production of CNC machine tools. For example, the feeding process of a truss robotic arm is as follows: the CNC robotic arm moves along the X-axis to above the workpiece feeding position and stops, then the Z-axis moves downward so that the opened gripper can just grab the workpiece, the gripper is closed to grab the workpiece, and then the Z-axis moves upward to the specified height, and then moves along the X-axis direction to directly above the worktable chuck. Then the Z-axis moves downward to load the workpiece into the chuck or fixture, and the chuck clamps it. The Z-axis rises above the machine tool protective cover, and the X-axis moves to the waiting position to wait for the machine tool to complete the machining of the workpiece; The cutting process is as follows: after completing the machining of the workpiece, the X-axis moves directly above the chuck, the Z-axis moves downward, the gripper opens to pick up the workpiece, then the Z-axis moves upward, and the X-axis transports the workpiece to the designated position. Through this loading and unloading process, CNC machine tool truss robots enable factories to manufacture products with higher efficiency, while meeting production needs and ensuring product processing accuracy. Due to the easy control and high precision advantages of truss robots, they play an important role in CNC machine tool loading and unloading applications, effectively improving production efficiency, reducing labor intensity, and lowering labor costs.
